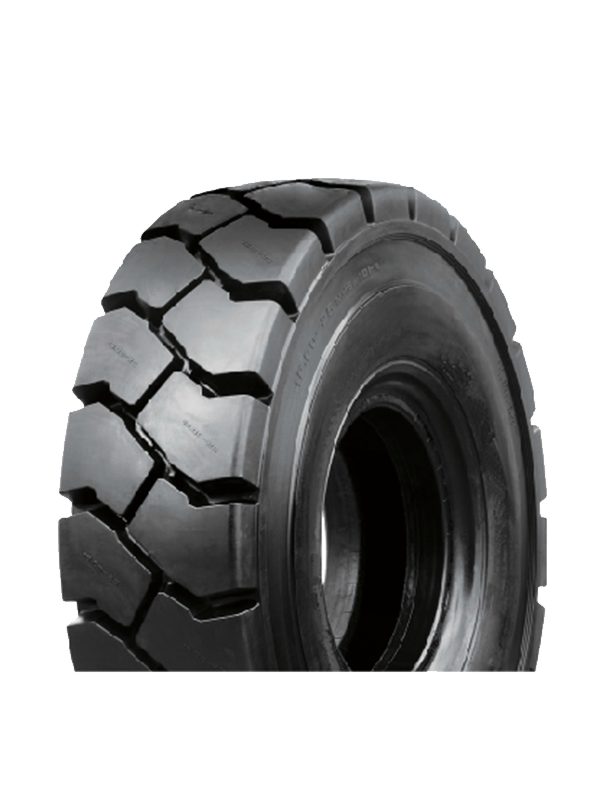

Port Use Tire

Specification
Application
Packing

SIZE	PR	TYPE	Tread Depth （MM)	Standard Rim	Inflation Pressure	LOAD CAPACITY									Section Width （MM)	Overall Diameter （MM）
							0km/h	Creep	5km/h	10km/h	15km/h	20km/h	25km/h	30km/h
							Static	Creep	3mph	5mph	9mph	12mph	15mph	19mph
18.00-25	40	TL	69	13.00/2.5	1000kPa	kg	30600	27200	24650	22950	22100	21590	21250	21080	526	1673
18.00-25	40	TL	69	13.00/2.5	145psi	lbs	67470	59980	54350	50610	48730	47610	46860	46480	526	1673
16.00-25	36	TL	62	11.25/2.0	1100kPa	kg	24090	21415	19470	18060	17400	16980	16705	16535	432	1548
16.00-25	36	TL	62	11.25/2.0	160psi	lbs	53105	47205	42915	39810	38360	37440	36840	36470	432	1548
16.00-25	32	TL	62	11.25/2.0	1000kPa	kg	22100	19650	17800	16600	16000	15600	15350	15195	432	1548
16.00-25	32	TL	62	11.25/2.0	145psi	lbs	48730	43320	39240	36595	35280	34430	33880	33540	432	1548
16.00-25	28	TL	62	11.25/2.0	900kPa	kg	20700	18400	16675	15525	14950	14605	14375	14260	432	1548
16.00-25	28	TL	62	11.25/2.0	130psi	lbs	45640	40570	36770	34230	32970	32200	31700	31440	432	1548
14.00-25	28	TT	57	10.00/1.5	1000kPa	kg	18000	16000	14500	13500	13000	12700	12500	12400	386	1417
14.00-25	28	TT	57	10.00/1.5	145psi	lbs	39690	35280	31970	29770	28670	28000	27560	27340	386	1417
14.00-24	32	TT	57	10	1100kPa	kg	19605	17430	15845	14700	14160	13820	13600	13460	386	1417
14.00-24	32	TT	57	10	160psi	lbs	43220	38420	34925	32400	31200	30450	29960	29660	386	1417
14.00-24	28	TT/TL	57	10	1000kPa	kg	18000	16000	14500	13500	13000	12700	12500	12400	386	1417
14.00-24	28	TT/TL	57	10	145psi	lbs	39690	35280	31970	29770	28670	28000	27560	27340	386	1417
12.00-24	24	TT	54	8.5	1000kPa	kg	13600	12150	11000	10250	9850	9650	9500	9400	333	1300
12.00-24	24	TT	54	8.5	145psi	lbs	29980	26785	24250	22595	21715	21265	20940	20720	333	1300
12.00-20	24	TT	45	8.5	1000kPa	kg	14260	12700	11510	9800	9440	9230	8250	8180	340	1173
12.00-20	24	TT	45	8.5	145psi	lbs	31430	28000	25370	21600	20800	20340	18180	18030	340	1173
10.00-20	18	TT	40	7.5	1000kPa	kg	9630	8560	7780	7255	6990	6830	5520	5480	300	1097
10.00-20	18	TT	40	7.5	145psi	lbs	21220	18870	17150	16000	15400	15050	12160	12080	300	1097
